LH-VOC-XST Spray Tower

Short Description:

XST-Ⅱ acid mist purification tower is a new generation of waste gas treatment equipment developed based on foreign waste gas treatment equipment. This equipment has the advantages of low resistance, low energy consumption, low noise, and high purification efficiency. It can treat the hydrogen chloride gas produced in industrial production ( HCL), hydrogen cyanide gas (HCN), hydrogen fluoride gas (HF), ammonia gas (NH3), sulfuric acid mist (H2SO4), chromic acid mist (CrO3), alkali vapor (NaOH), hydrogen sulfide gas (H2S), sulfur dioxide Gas (SO2) and formalin (HCHO) and other water-soluble gases. This equipment has compact structure, small floor space, corrosion resistance, anti-aging, and convenient maintenance and management. Advanced vertical water pumps should be used without dripping. It is currently an ideal novel acid mist purification equipment in China.


Product Detail

Product Tags

Product detail

Purpose and scope



The exhaust gas is forced into the equalizing chamber of the purification tower by the fan, and enters the inner tower processor through unequal velocity spray treatment. The exhaust gas passes through the packing layer composed of the novel Pall ring and enters the second spray treatment to make the gas and liquid two Full contact with each other, neutralization reaction occurs, and then discharged into the atmosphere after deliquoring treatment, and the purified waste gas meets the national standard.



Scope of application

It is suitable for the pollution control of lead fume or vapor in printing, storage battery, non-ferrous metal smelting, military industry and other industries, as well as pickling waste gas or other waste gas in chemical, smelting, electroplating, picture tube, printing and dyeing, pharmaceutical, instrumentation, electronic components, machinery manufacturing and other industries Purification. It can also be used as a wet dust collector in the field of dust removal, especially suitable for occasions where the concentration of dust is not high but the gas has a certain degree of toxicity. The purified gas can meet the national emission standards.

Waste gas type

Use of absorption fluid

After purification efficiency

Lead-containing soot

0.5% dilute acetic acid or 5% sodium hydroxide

90%

Tequic acid and hydrofluoric acid

5% Sodium hydroxide or tap water

Toxic dust

tap water

Mercury steam

0.3%~0.5% potassium permanganate or 2% ammonium persulfate

90%

Sulfur dioxide

5%~10% Sodium carbonate, Sodium hydroxide (calcium)

Nitrogen oxide

5% ~ with 10% sodium hydroxide or 10% urea

Organic mixed gas

Light diesel

Equipment material

Carbon Steel, stainless steel, Fiberglass, Plastic (PP, PVC)



How do we select right equipment ?

Specifications

Treatment of wind volume m3/h

Exhaust fan

Pressure pump under corrosion resistance

Self-respect KG

Work weight KG

Tower diameter

The tower is high

Rules, g

Electric power KW

Remaining pressure Pa

Type, number

Electric power KW

mm

mm

LH-VOC-XST-5000

5000

5A

2.2

205

50FYS-12

3

400

2114

1400

2350

LH-VOC-XST-10000

10000

6A

4

480

50FYS-12

3

650

3260

1800

3350

LH-VOC-XST-15000

15000

8C

7.5

362

50FYS-12

3

900

4160

2000

3410

LH-VOC-XST-20000

20000

8C

11

803

65FYS-12

5.5

1200

4948

2200

3410

LH-VOC-XST-25000

25000

10C

11

372

65FYS-12

5.5

1400

5810

2400

3410

LH-VOC-XST-30000

30000

10C

15

558

65FYS-12

5.5

1600

6710

2600

3410

LH-VOC-XST-35000

35000

10C

15

421

65FYS-12

5.5

1800

7370

2800

3410

LH-VOC-XST-40000

40000

12C

18.5

490

80FYS-12

11

2100

9455

3200

3550

LH-VOC-XST-45000

45000

12C

18.5

392

80FYS-12

11

2400

10564

3400

3550

LH-VOC-XST-50000

50000

12C

22

637

80FYS-12

11

1800

11730

3600

3550

Note: If not listed in the required wind volume, it can be designed separately.

Project case

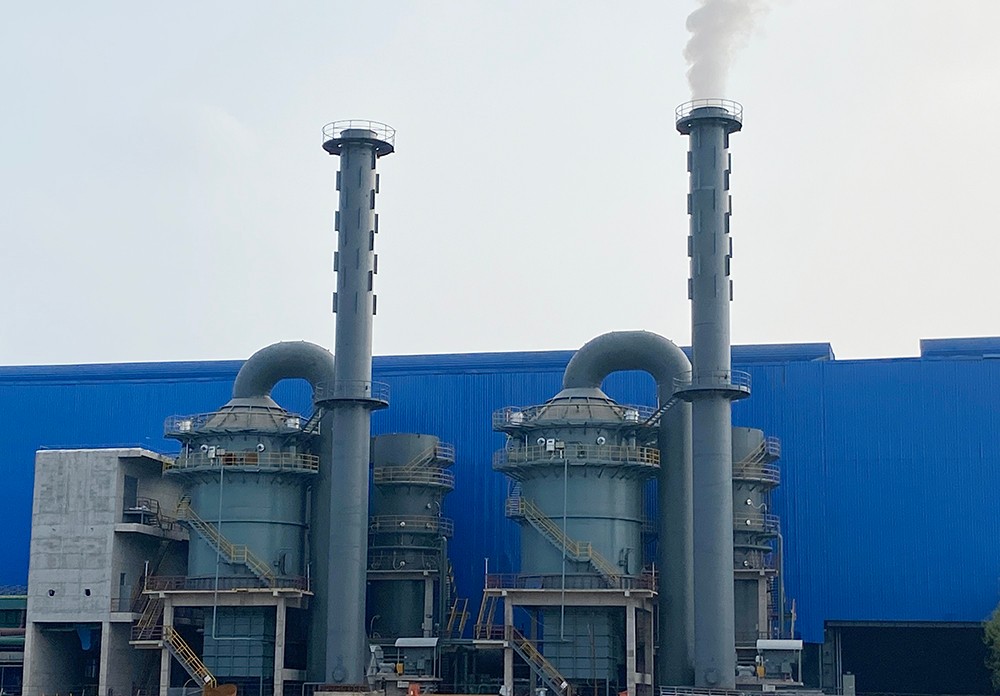

案例

Hebei xx Steel Co., Ltd. is a modern private steel enterprise integrating ironmaking, steelmaking and rolling. Our company has built 2 sets of steel slag wet electric dust removal system, with a processing air volume of 300,000 m³/h, an initial concentration of 400mg/m³, and a negative pressure type. The dust removal program of "removal device + dust removal fan + chimney" treats the dusty water vapor generated in the roller crushing process. After the scrubber, dehydrator, etc., the exhaust gas reaches the ultra-low emission standard of the relevant industry <10 mg /N m³.
